AK-4010-C Cassandra Barndominium House Plan

Want to buy this house plan? Scroll to the bottom and find the link to purchase.

AK-4010-C Cassandra Barndominium House Plan

About this barndominium house plan:

  • 3235 Heated Square Feet
  • 5 Bedrooms
  • 3.1 Bathrooms
  • Single Story
  • Open concept
  • Utility room
  • Mudroom
  • Pantry
  • Laundry room
  • Front and rear porch
  • 765 Sq Ft Garage
  • Magnificent 3,235 SF single-story barndominium that perfectly balances expansive social hubs with quiet, private retreats for the whole family.
  • Comprehensive sleeping quarters include a secluded primary suite and four additional guest bedrooms, ideal for large families or a dedicated home office.
  • Thoughtful configuration features a private primary ensuite, a full shared bath for guest rooms, and a convenient central powder room.
  • Dedicated organization zone off the garage features a separate laundry room and mudroom to keep daily clutter tucked away.
  • Spacious 765 SF garage provides ample depth for large vehicles and additional household storage.

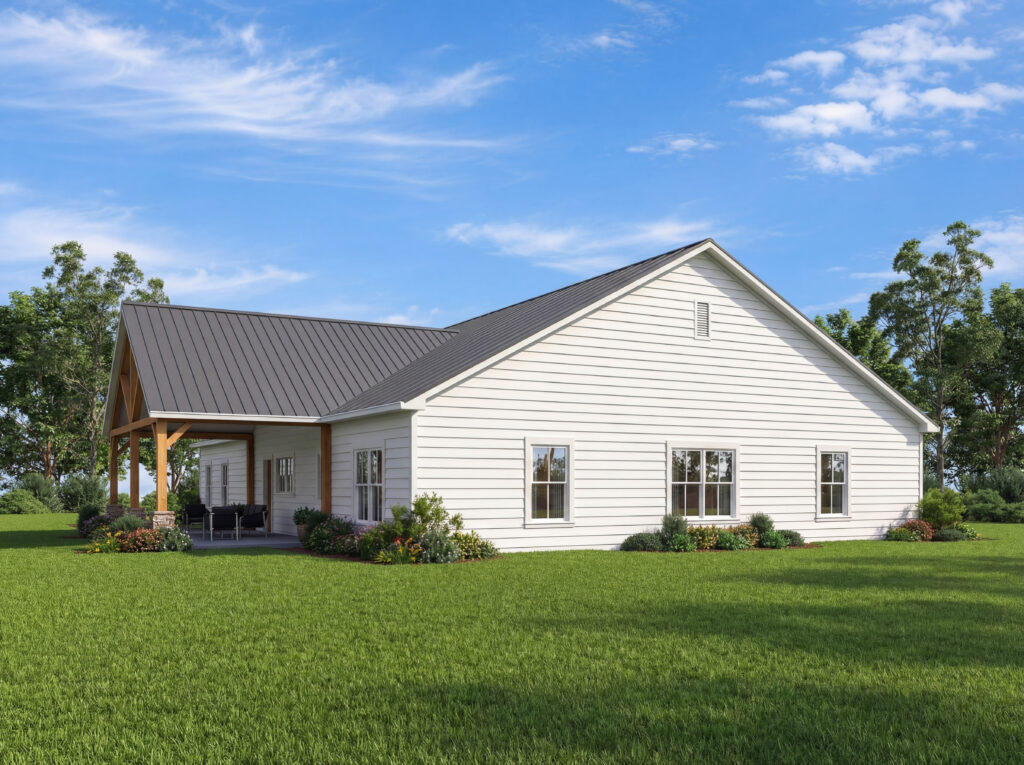

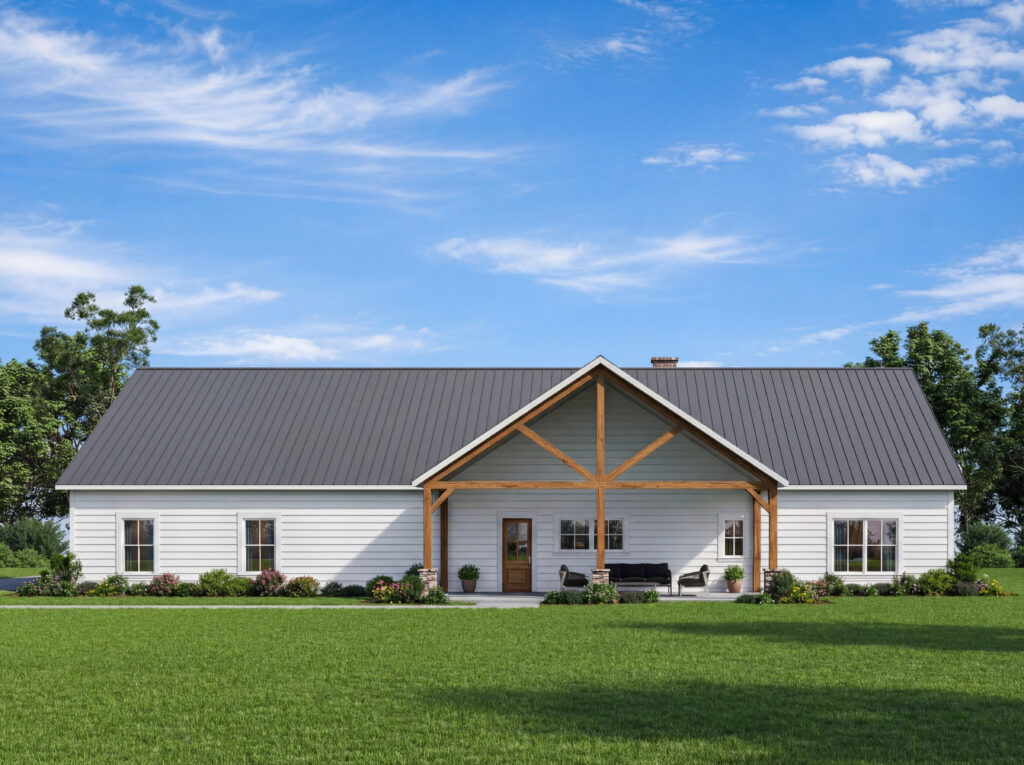

  • Large 30-foot wide covered rear porch and a welcoming front porch offer multiple sheltered spots for relaxation.

What’s included in AK-4010-C:

Cover sheet with General Notes, Area Tabulation, Index, Drawing Symbol Key, Rendering, + Materials Legend

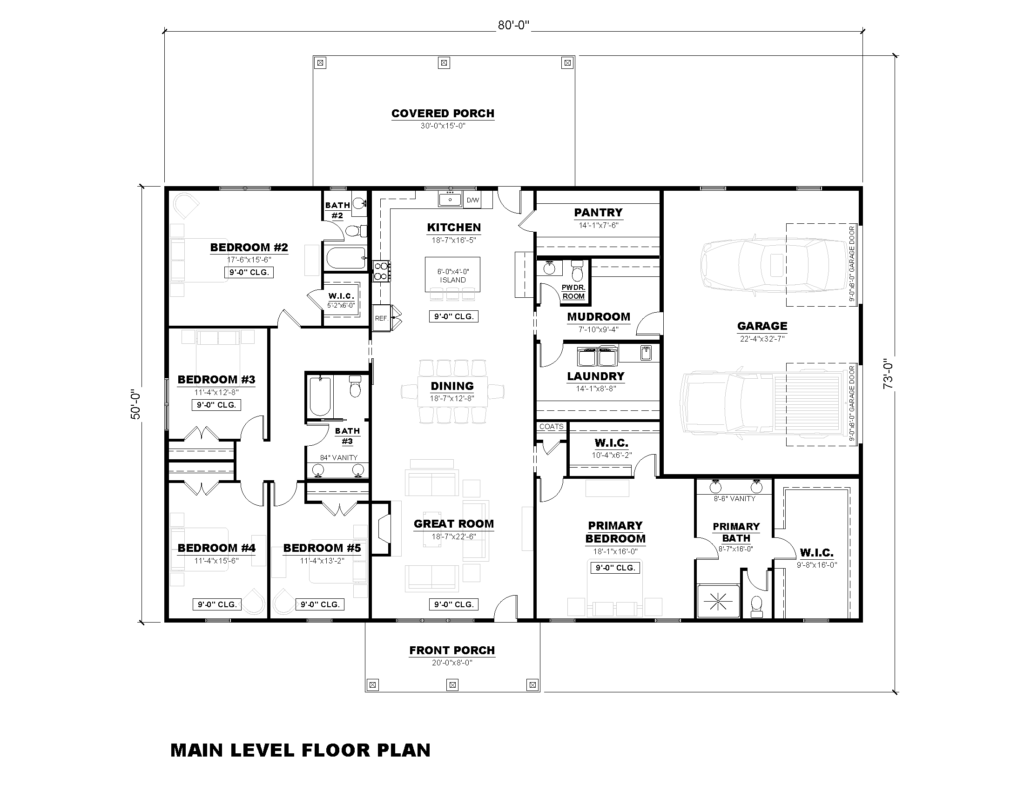

Main Level Floor Plan + Wall Type Legend
Roof Plan + General Roof Plan Notes

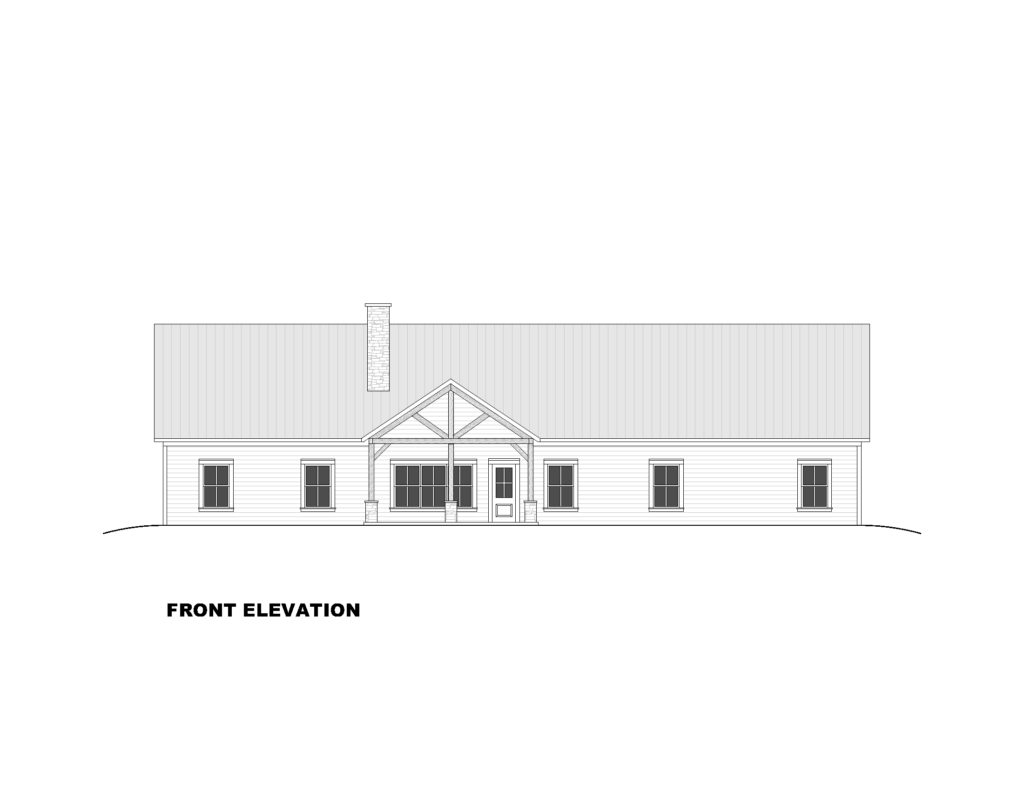

Front + Right Exterior Elevations, General Elevation Notes

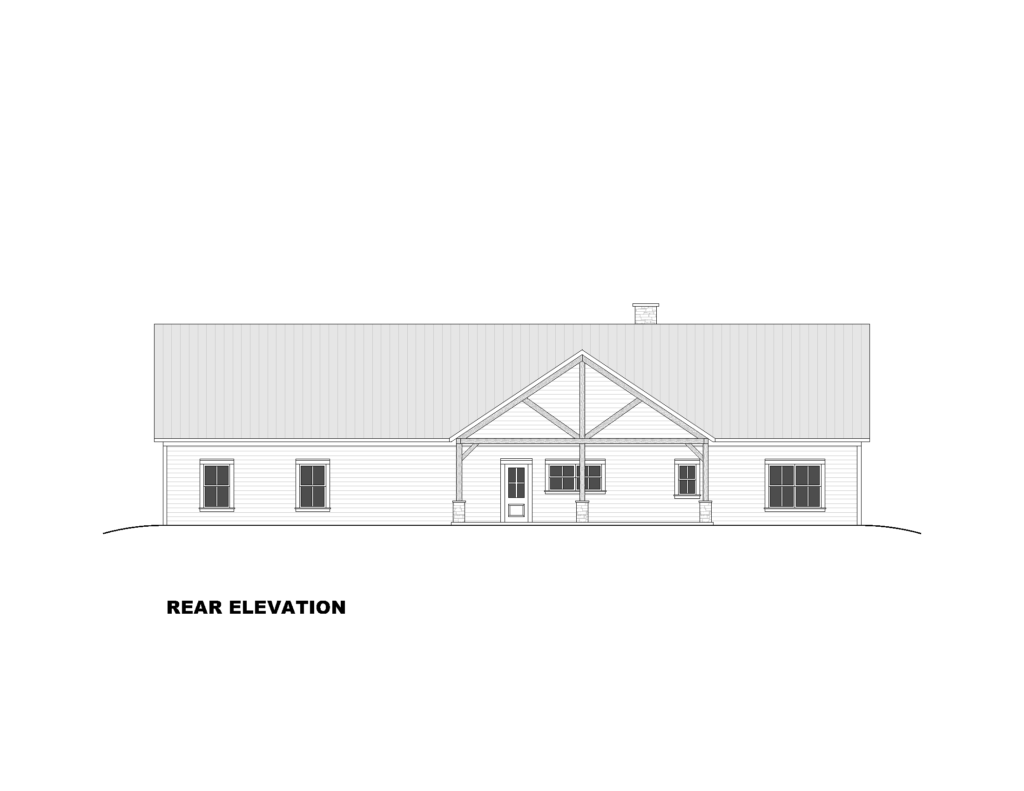

Rear + Left Exterior Elevations, General Elevations Notes

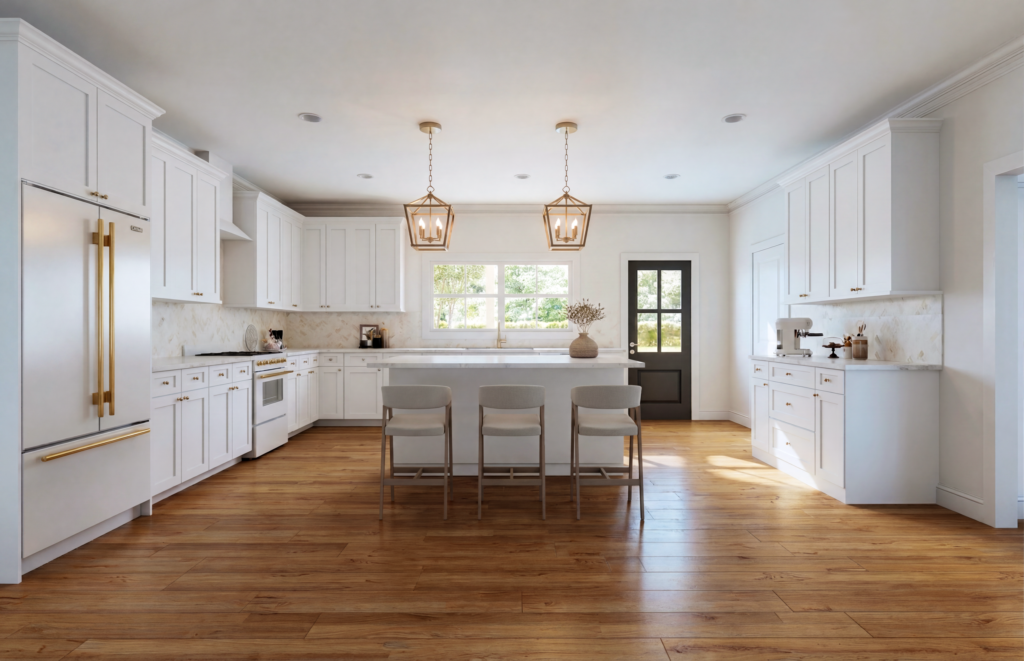

Enlarged Kitchen Plan, Interior Elevations, Typ. Wall Section
Building Section
Radon Mitigation Details
Electrical Lighting Plans, Electrical Legend, + Electrical Notes
Foundation Plan
Foundation Details

For more barndominium floor plans, check out our complete collection of 5-bedroom barndominium floor plans.

Need to make changes? Submit a modification request using the button that says Modify This Plan. We will get you a free price quote within 72 hours.
