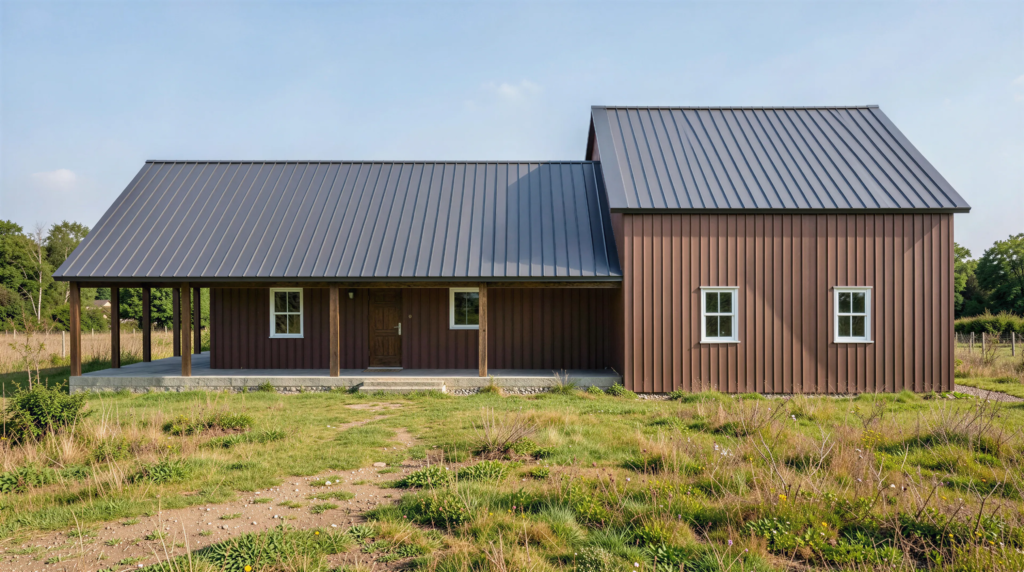

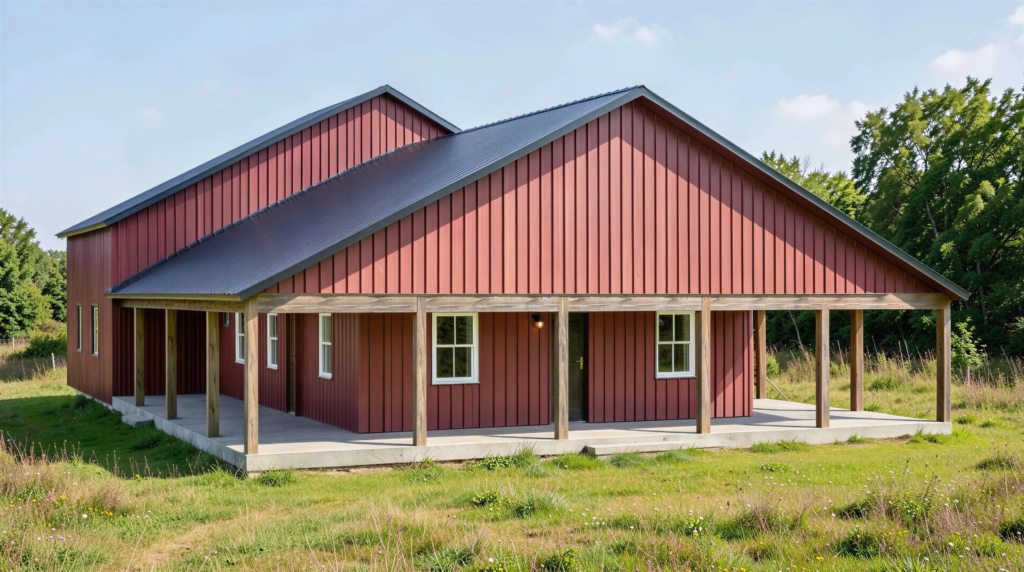

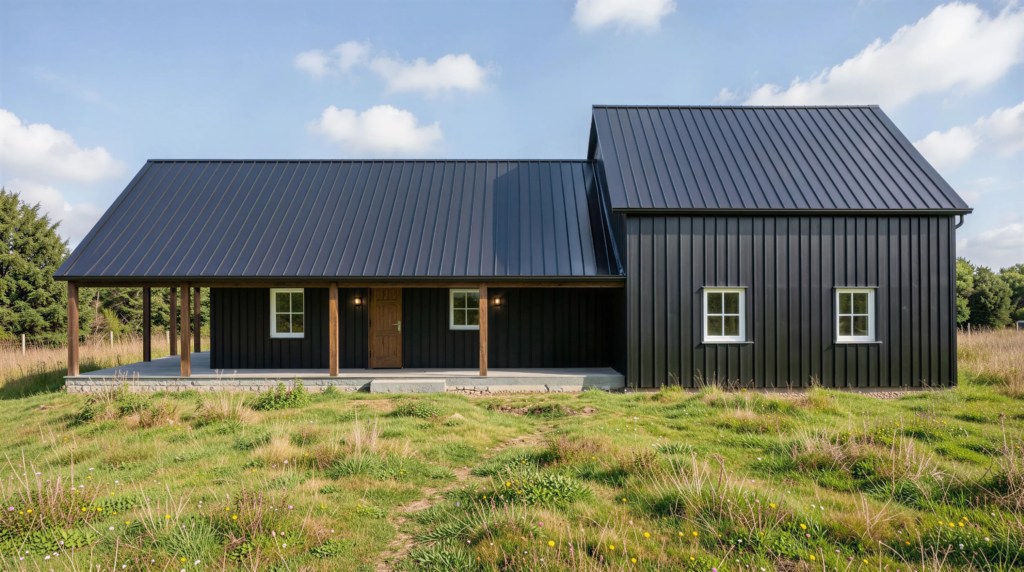

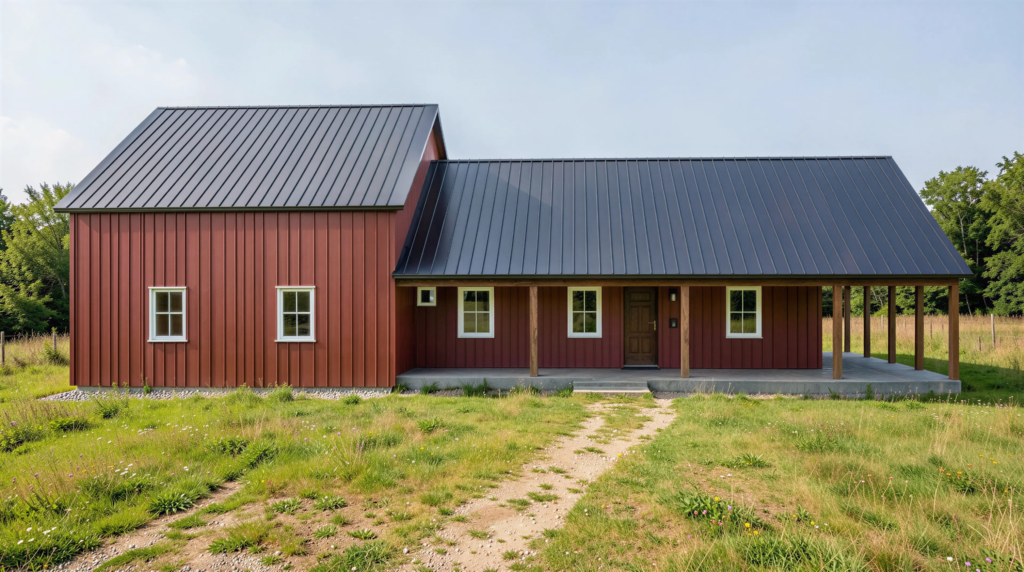

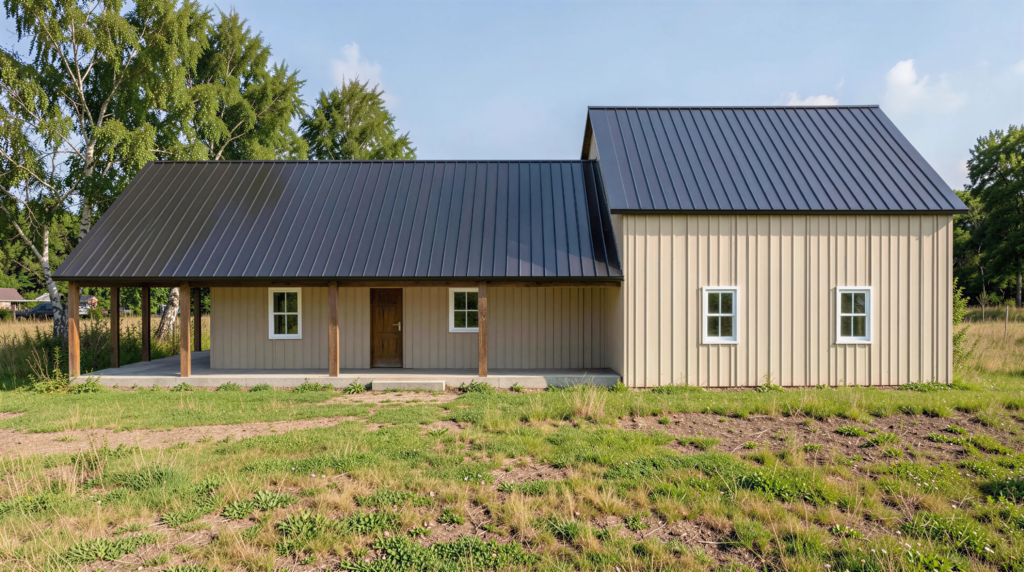

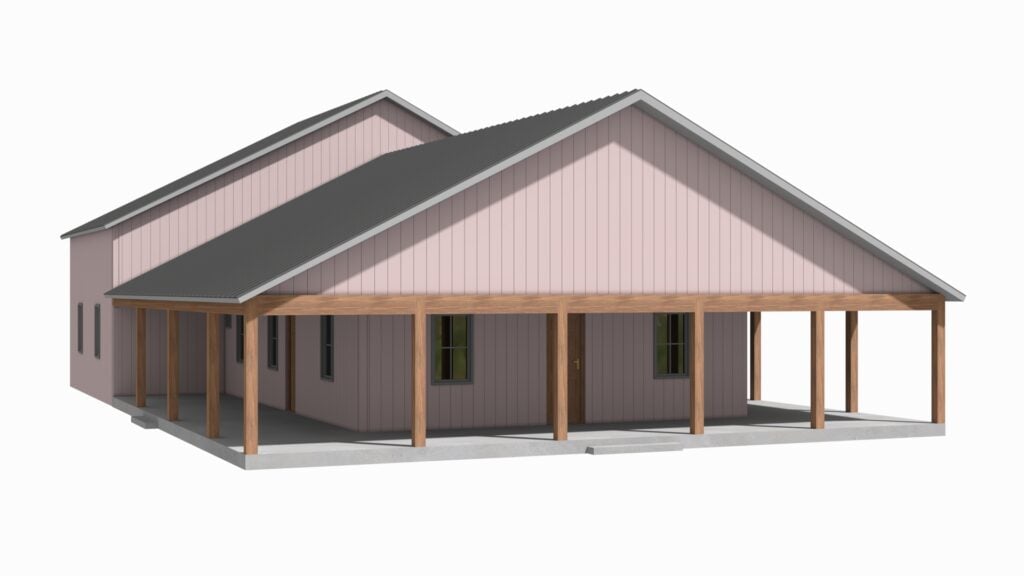

PL-2844 Arlene Barndominium House Plan

Want to buy this house plan? Scroll to the bottom and find the link to purchase.

PL-2844 Arlene Barndominium House Plan

About this barndominium house plan:

  • 1305 Heated Square Feet
  • 1 Bedroom
  • 2 Bathrooms
  • Single Story
  • Open concept
  • Walk-in Pantry
  • Laundry/Mud Room
  • Mechanical Room
  • Storage Room
  • Wraparound Porch
  • 1395 Sq Ft Garage/Shop
  • The workshop provides a grand-scale clearance for multiple vehicles, storage, or a heavy-duty shop station.
  • Offers a beautifully optimized, low-maintenance single-story layout designed with fluid traffic patterns and zero wasted space.
  • A spectacular porch system frames the residential wing, delivering breathtaking country curb appeal and massive outdoor living capacity.
  • Features a spacious master bedroom sanctuary complete with its own private layout entry and immediate access to luxury amenities.
  • The primary suite is highly upgraded with a deep walk-in closet and an upscale master bathroom.
  • Includes the elite master ensuite alongside a well-positioned full guest bathroom, strategically placed near the main living core and the kitchen.
  • The plan features two separate rooms flanking the garage wall: a dedicated tool storage locker at the rear and a specialized lower mechanical room.

What’s included in PL-2844:

Cover Page

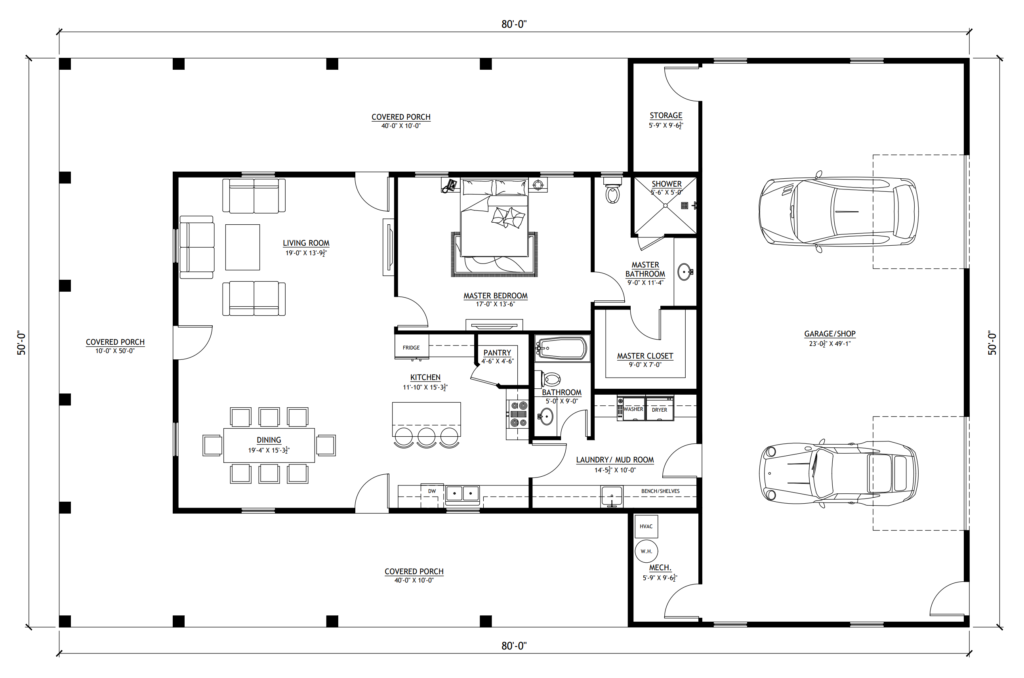

Floor Plan
Roof Plan

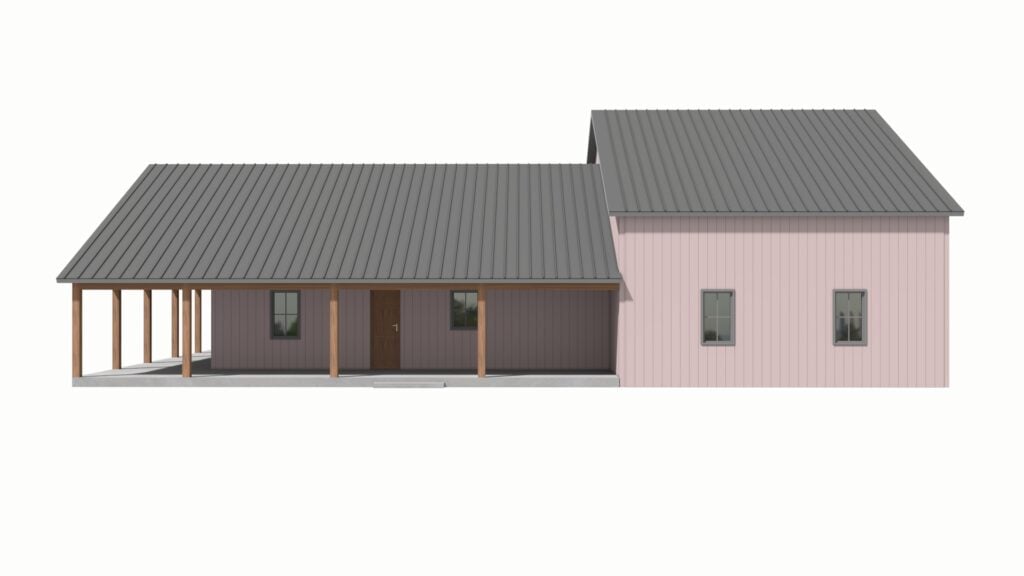

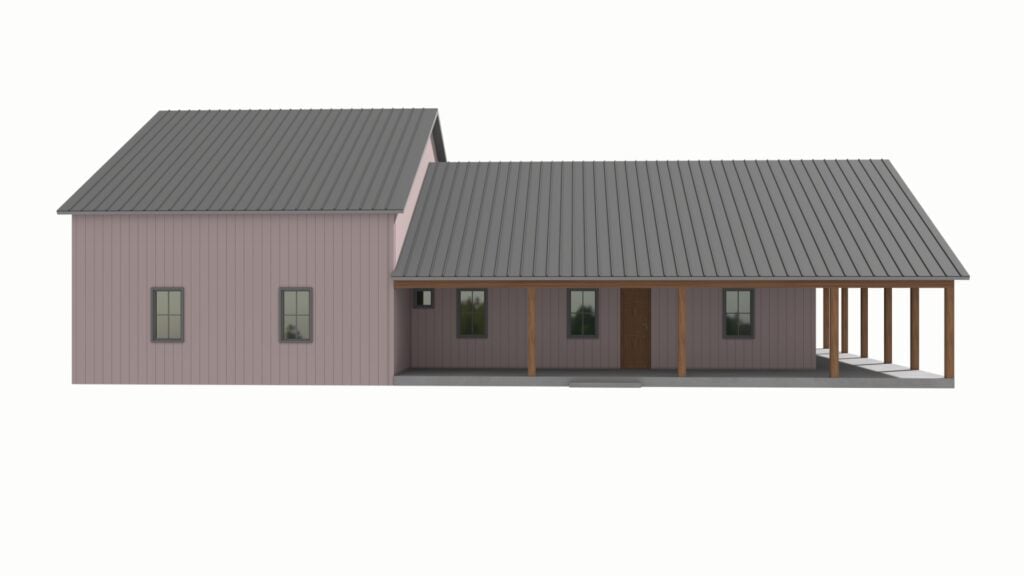

Front And Rear Elevation
Right And Left Elevation
Electrical Plan
Plumbing Plan
HVAC Plan
Roof Framing Plan
Foundation Plan
Foundation Detail
Interior Bearing Footing
C-Typical Column Detail
Wall Section

For more barndominium floor plans, check out our complete collection of 1 bedroom barndominium floor plans.

Need to make changes? Submit a modification request using the button that says Modify This Plan. We will get you a free price quote within 72 hours.
