Want to buy this house plan? Scroll to the bottom and find the link to purchase.
SV-30017 Jake Custom Home Plan
About this custom plan:
- 2357 Heated Square Feet
- 3 Bedrooms
- 2.1 Bathrooms
- Single Story
- Open concept
- Utility room
- Office
- Foyer
- Front & rear porch
- Garage Storage
- 871 Sq Ft Garage
- A spacious 2,357 sq ft layout designed for comfortable living with three inviting bedrooms paired with two full bathrooms and a handy half bath for everyday ease.
- Practical utility room complete with its own half bath—perfect for chores, cleanup, and added convenience.
- Dedicated office space ideal for working from home, studying, or managing day-to-day tasks.
- Welcoming foyer that sets the tone for the home’s bright, open design.
- An 871 sq ft garage featuring built-in storage space, giving you room for vehicles, tools, and organization.
What’s included in SV-30017:
Cover Page

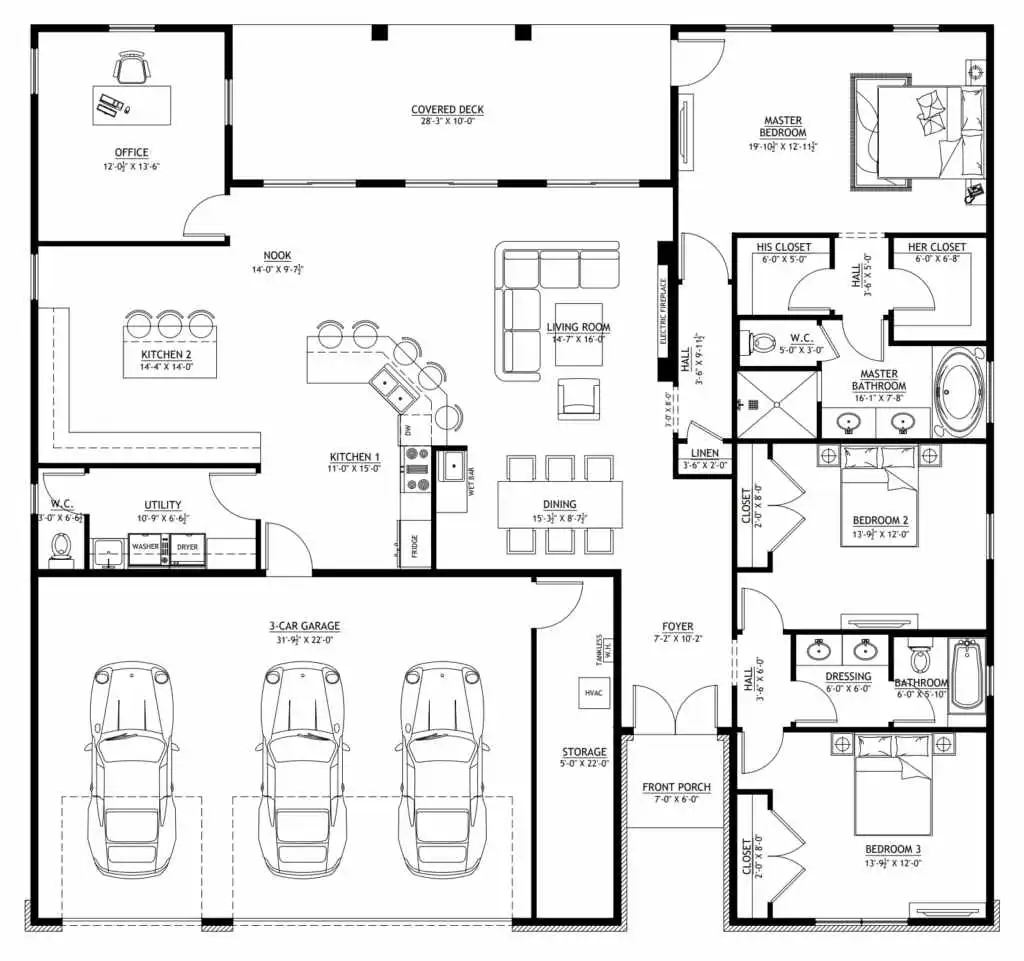

Floor Plan
Roof Plan

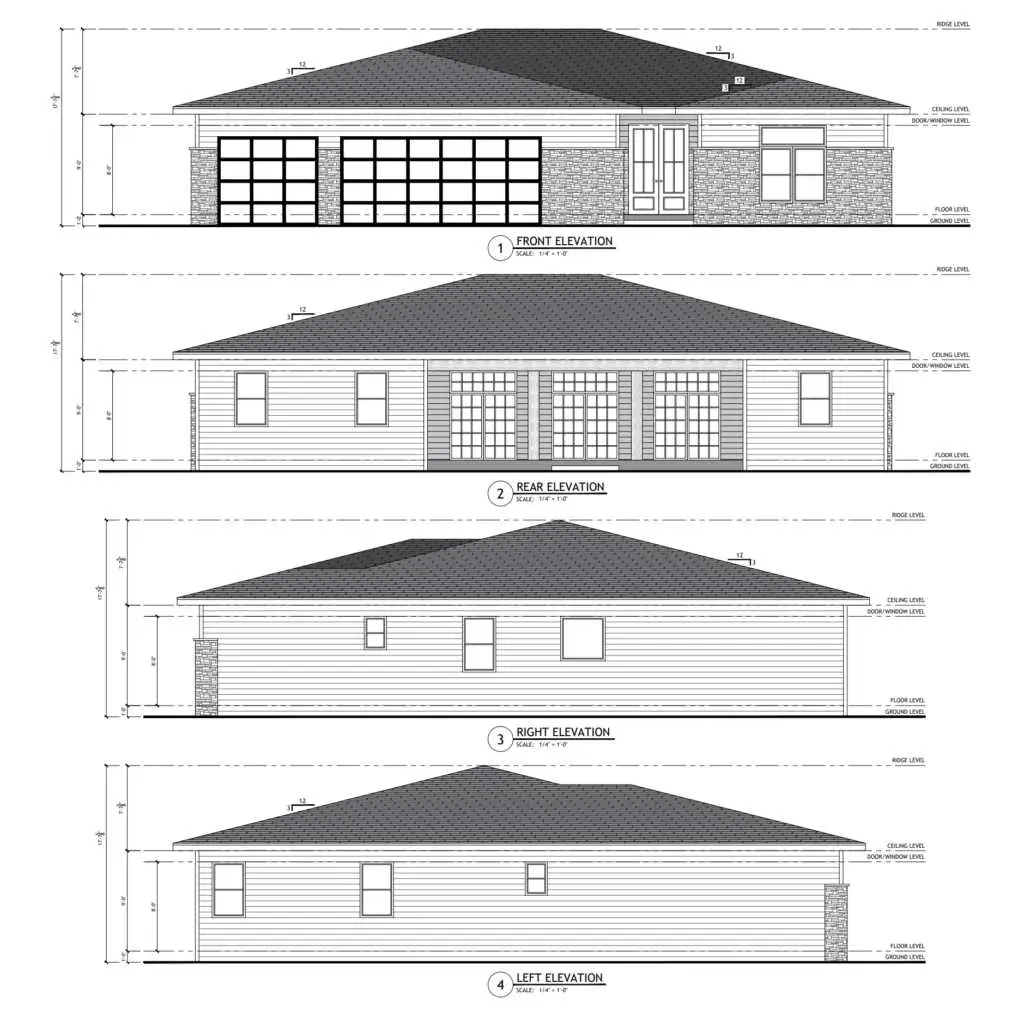

Exterior Elevations
Interior Elevations
Electrical Plan
Plumbing Plan
HVAC Plan
Roof Framing Plan
Wall Framing Plan
Ceiling Joist Plan
Foundation Plan
Foundation Detail
Interior Bearing Footing
C-Typical Column Detail
Wall Section
Section A-A and Section B-B
Typical Framing Details-1
Typical Framing Details-2
Typical Framing Details-3
For more barndominium floor plans, check out our complete collection of 3-bedroom barndominium floor plans.
Need to make changes? Submit a modification request using the button that says Modify This Plan. We will get you a free price quote within 72 hours.
