SV-5517 Charles Barndominium House Plan

Want to buy this house plan? Scroll to the bottom and find the link to purchase.

SV-5517 Charles Barndominium House Plan

About this barndominium house plan:

  • 2269 Heated Square Feet
  • 3 Bedrooms
  • 2.1 Bathrooms
  • Single Story
  • Open concept
  • Walk-in Pantry
  • Laundry Room
  • Mechanical Room
  • Patio
  • Front and Rear Porch
  • 1056 Sq Ft Garage
  • Double-door entrance leads straight into a wide-open social hub combining the great room and the kitchen/dining area, warmed by a cozy gas fireplace.
  • Kitchen features an expansive preparation island with integrated casual seating, backed by an efficient wrap-around counter layout, and a walk-in storage pantry.
  • Primary retreat features a spacious master bedroom, spa-style ensuite master bathroom, and direct access to a deep walk-in dressing wardrobe.
  • Corridor connects two spacious secondary bedrooms each boasting its own walk-in closet, and both share quick access to a centralized full family bathroom.
  • Arriving from the garage entry drops you straight into a utility zone incorporating a custom mudroom bench with hooks, a powder room, and a laundry room.
  • Deep multi-vehicle garage wing goes beyond traditional vehicle parking by incorporating a magnificent built-in entertainment bar with casual counter seating.
  • Front porch delivers timeless country curb appeal, perfectly complemented by a sheltered covered rear porch that opens directly onto a massive concrete patio.

What’s included in SV-5517:

Cover Page

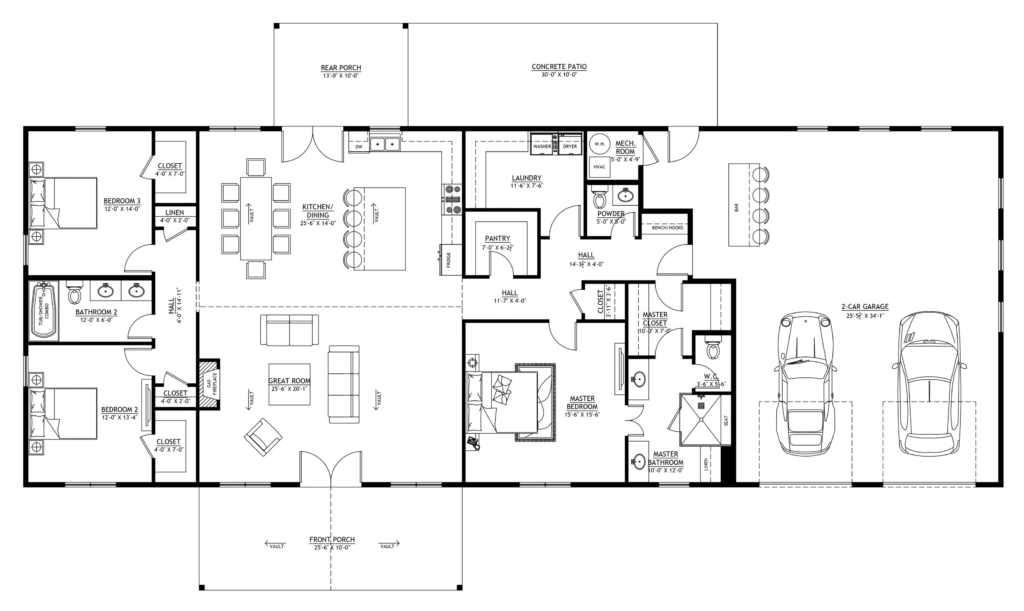

Floor Plan
Roof Plan
Front And Rear Elevation
Right And Left Elevation
Electrical Plan
Plumbing Plan
HVAC Plan
Roof Framing Plan
Foundation Plan
Foundation Detail
Interior Bearing Footing
C-Typical Column Detail
Wall Section

For more barndominium floor plans, check out our complete collection of 3-bedroom barndominium floor plans.

Need to make changes? Submit a modification request using the button that says Modify This Plan. We will get you a free price quote within 72 hours.

Order SV-5517 Now
