BCO-40190-R Ramirez Barndominium House Plan

Want to buy this house plan? Scroll to the bottom and find the link to purchase.

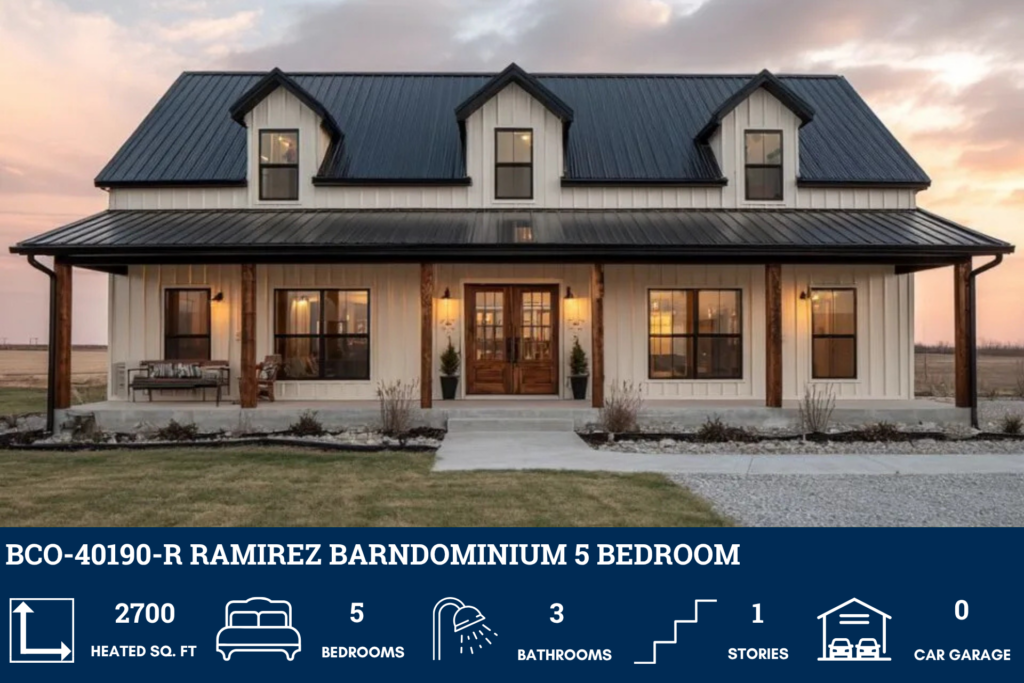

BCO-40190-R Barndominium House Plan

About this barndominium house plan:

  • 2700 Heated Square Feet
  • 5 Bedrooms
  • 3 Bathrooms
  • Single Story
  • Open concept
  • Laundry room
  • Pantry
  • Front porch
  • The open-concept layout connects the living room, dining area, and kitchen, creating an inviting space for everyday meals, entertaining, and relaxing together.
  • A large kitchen island adds extra workspace and seating, while the nearby pantry keeps essentials organized.
  • The private master suite offers a peaceful retreat with a generous walk-in closet, a dedicated water closet, and an ensuite bathroom.
  • Four additional bedrooms provide flexible spaces for family members, guests, or a home office, with two shared bathrooms conveniently located nearby.
  • A dedicated laundry room keeps household chores manageable, while the expansive front porch offers a welcoming spot to enjoy fresh air and unwind outdoors.

What’s included in BCO-40190-R:

Cover Page

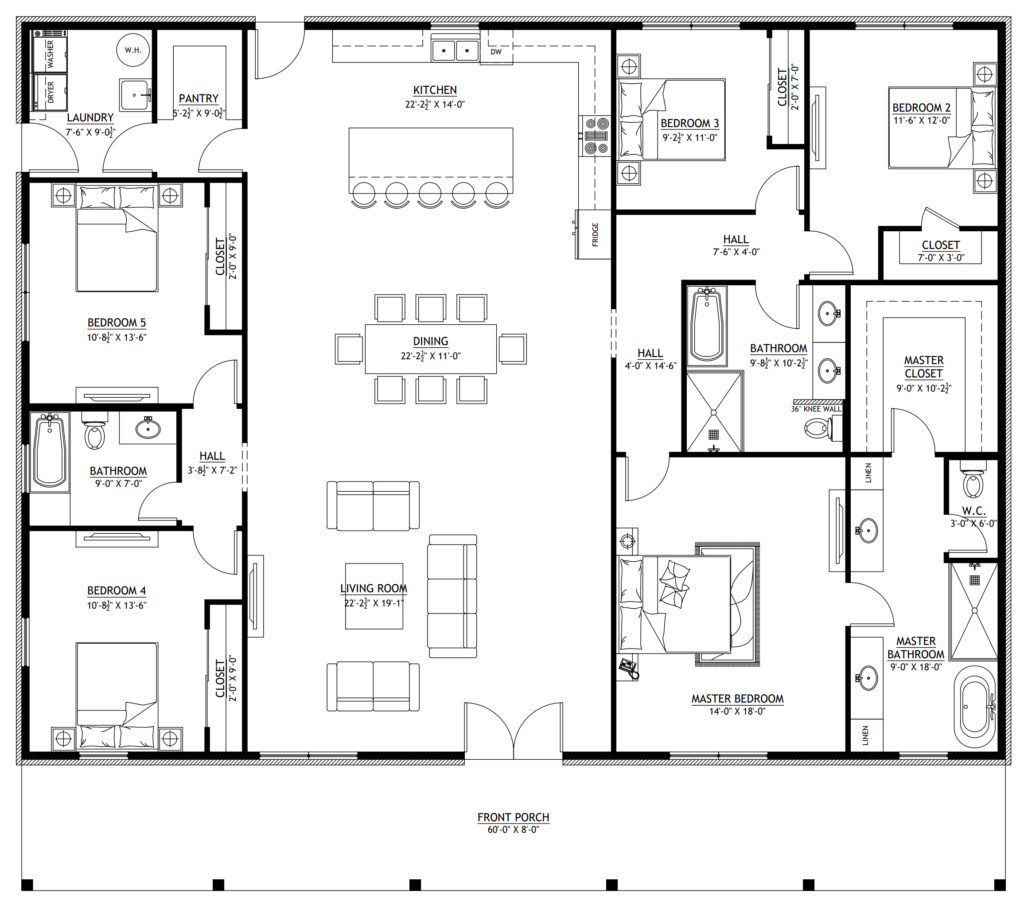

Floor Plan
Roof Plan
Front and Rear Elevation
Right and Left Elevation
Electrical Plan
Plumbing Plan
HVAC Plan
Roof Framing Plan
Foundation Plan
Foundation Detail
Interior Bearing Footing
C-Typical Column Detail
Wall Section

For more barndominium floor plans, check out our complete collection of 5-bedroom barndominium floor plans.

Need to make changes? Submit a modification request using the button that says Modify This Plan. We will get you a free price quote within 72 hours.

Order BCO-40190-R Now
