Want to buy this house plan? Scroll to the bottom and find the link to purchase.

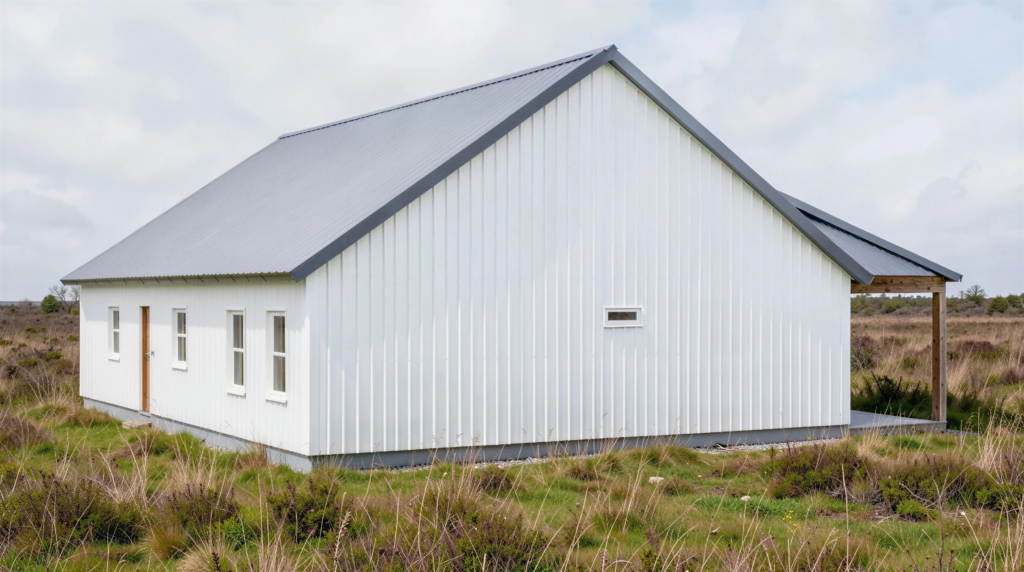

BCO-40204-T Trey Barndominium House Plan
About this barndominium house plan:
- 2400 Heated Square Feet
- 40×60 Living space dimension
- 3 Bedrooms
- 2.1 Bathrooms
- Single Story
- Open concept
- Jack and Jill bathroom
- Walk-in pantry
- Laundry room
- Mechanical room
- Storage
- Front porch

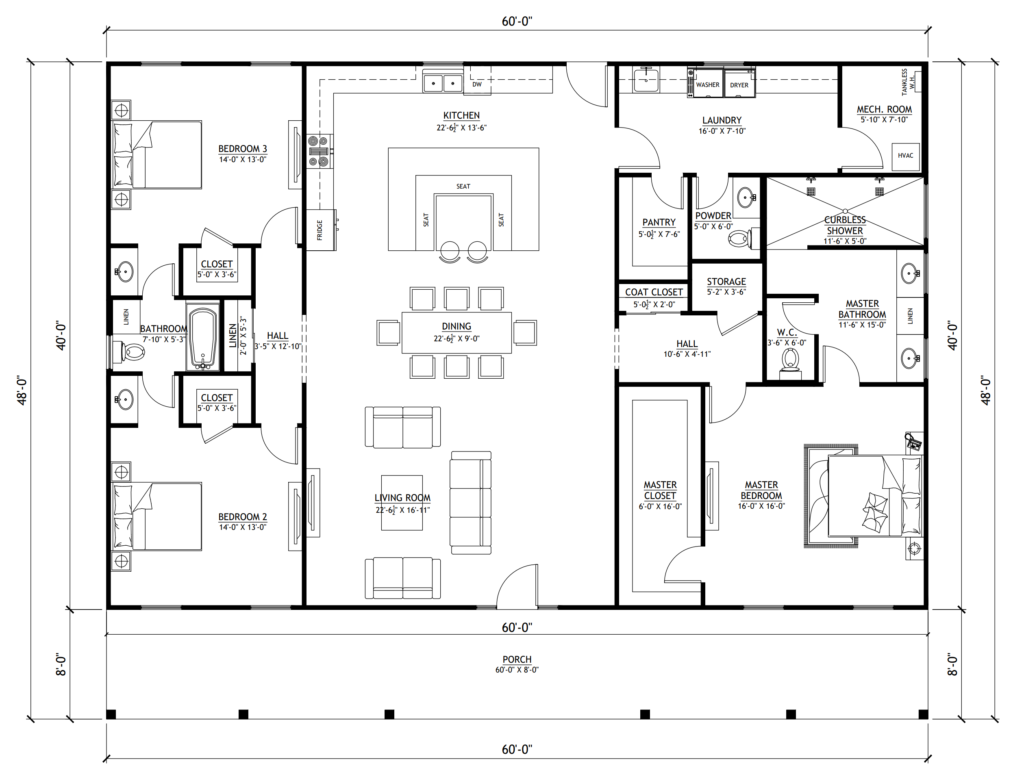

- A generous 2,400 SF heated floor plan provides effortless accessibility across a wide 60′ x 40′ footprint.
- The layout features a private master wing on one side and a dedicated guest or children’s wing with two bedrooms on the opposite end.
- Includes a high-end master ensuite, a convenient guest powder room, and a Jack and Jill bathroom serving the secondary bedrooms.
- Bedrooms two and three share a smartly designed bathroom with dual vanities and private closet access for each room.

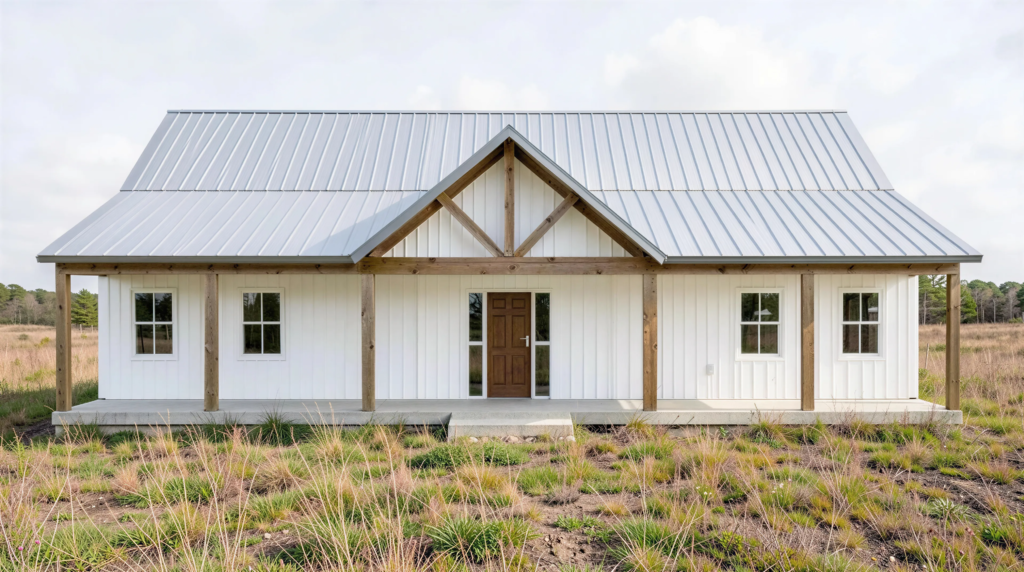

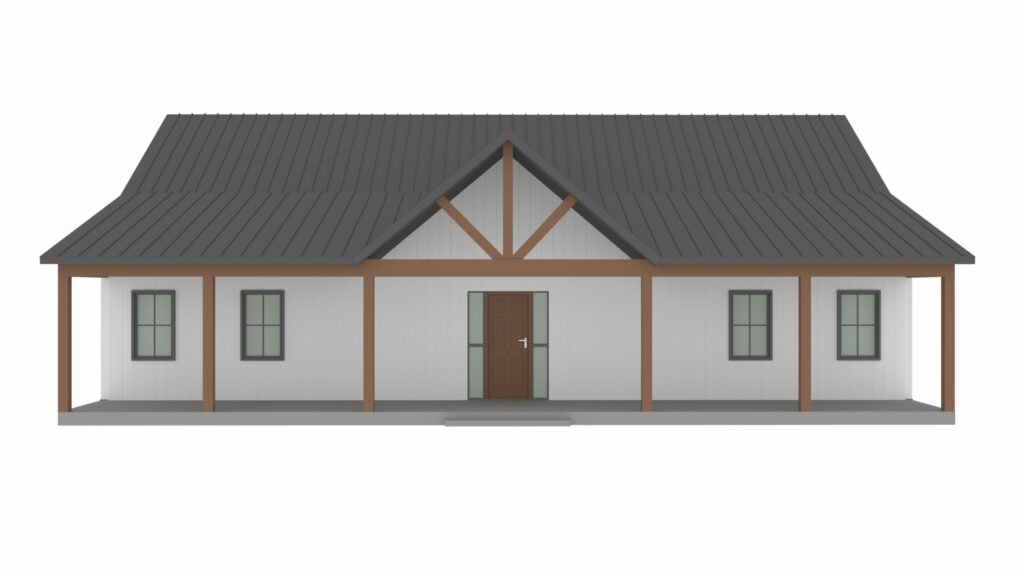

- A full-width front porch creates a grand entryway and offers 480 SF of sheltered outdoor living space.
- A dedicated pantry provides significant storage just steps from the main kitchen area.
- Specialized laundry room offers ample workspace and organization for household management.
- Discrete interior rooms for mechanical systems and extra storage ensure the home remains tidy and efficient.
What’s included in BCO-40204-T:
Cover Page
Floor Plan
Roof Plan
Front And Rear Elevation
Right And Left Elevation
Electrical Plan
Plumbing Plan
HVAC Plan
Roof Framing Plan
Foundation Plan
Foundation Detail
Interior Bearing Footing
C-Typical Column Detail
Wall Section
For more barndominium floor plans, check out our complete collection of 3-bedroom barndominium floor plans.
Need to make changes? Submit a modification request using the button that says Modify This Plan. We will get you a free price quote within 72 hours.
