PL-62512-V Vail Barndominium House Plan

Want to buy this house plan? Scroll to the bottom and find the link to purchase.

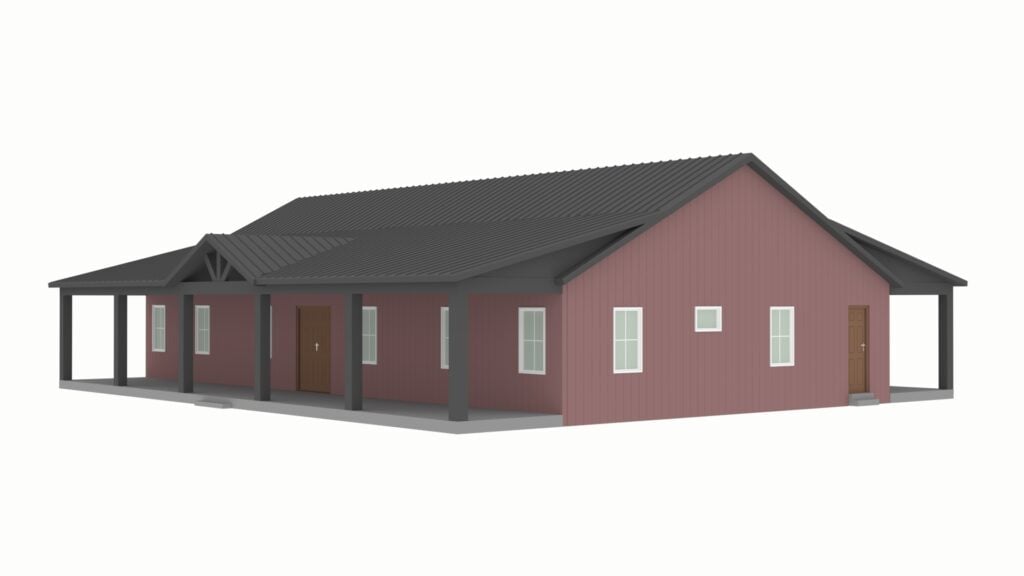

PL-62512-V Vail Barndominium House Plan

About this barndominium house plan:

  • 2800 Heated Square Feet
  • 40×70 Living Space Dimension
  • 3 Bedrooms
  • 2 Bathrooms
  • Single Story
  • Open concept
  • Office
  • Laundry room
  • Front and Rear Porch
  • The streamlined rectangular footprint delivers a cost-effective build while providing a spacious 2,800 SF heated interior with massive room dimensions.
  • Features a split-bedroom wing configuration, anchoring a master retreat on one side of the home and two spacious secondary bedrooms on the opposite end.
  • Includes a luxury master ensuite, alongside a large guest bathroom with a separate dressing room zone.
  • A dedicated private office space is situated near the master wing, providing an ideal work-from-home environment tucked away from the main living area.
  • The premium culinary workspace features an expansive central island, a coffee bar, and an abundance of counter space.
  • The dedicated laundry room offers extensive workspace, utility sinks, counter space, and a centralized home water heater closet.
  • Features full-width, 70-foot long sheltered porches on both the front and rear of the structure, adding 1,400 SF of total covered outdoor living space.

What’s included in PL-62512-V:

Cover Page

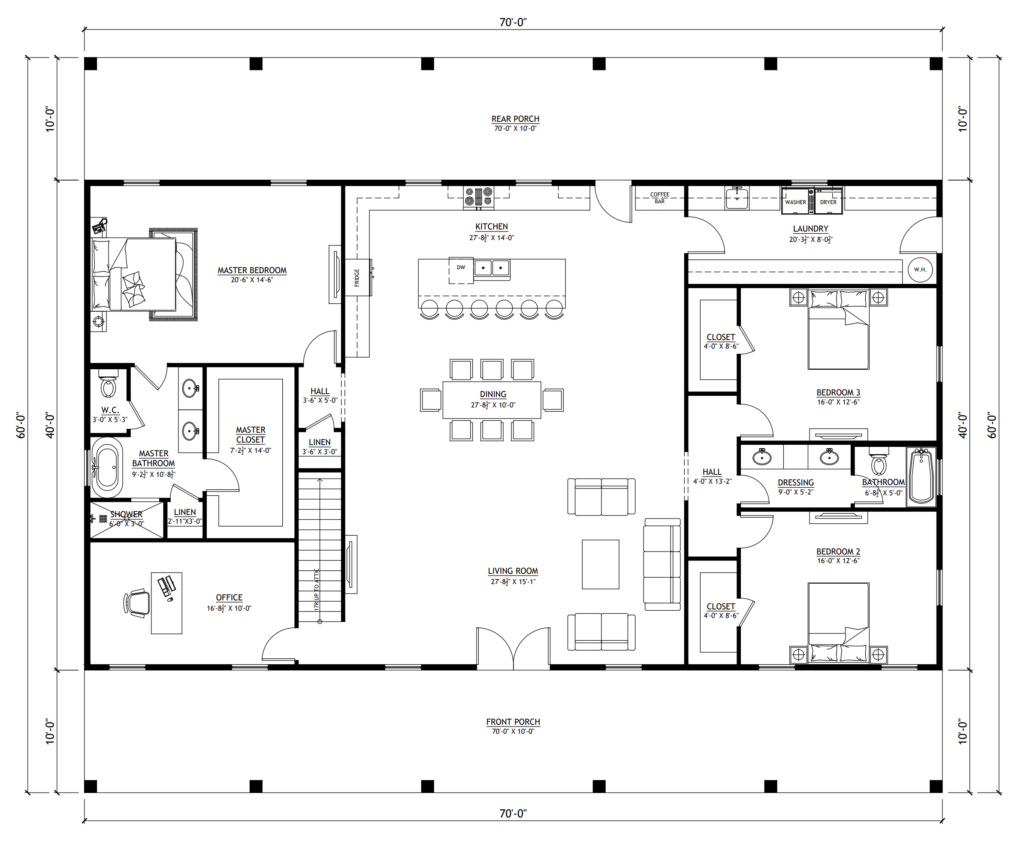

Floor Plan
Roof Plan

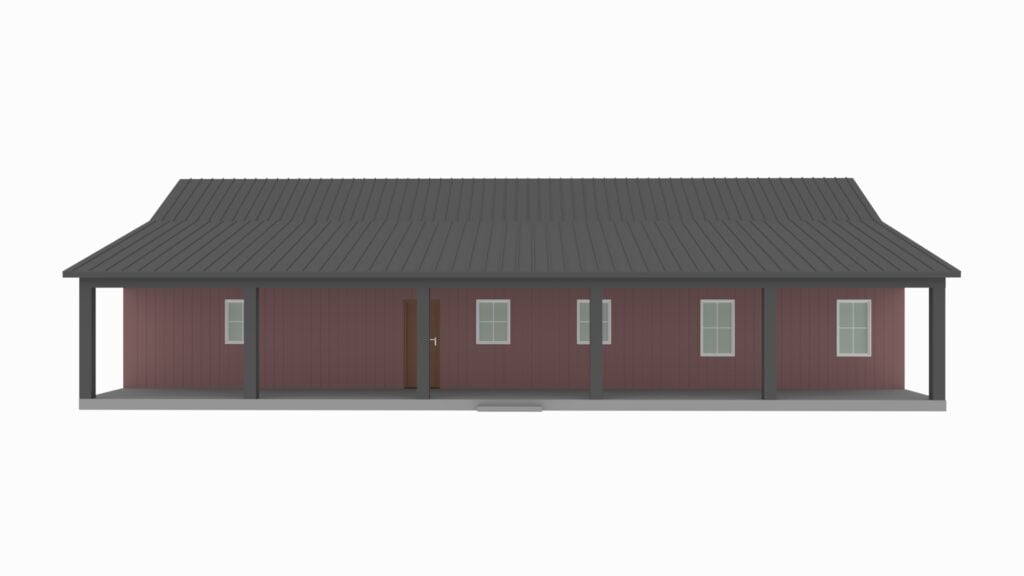

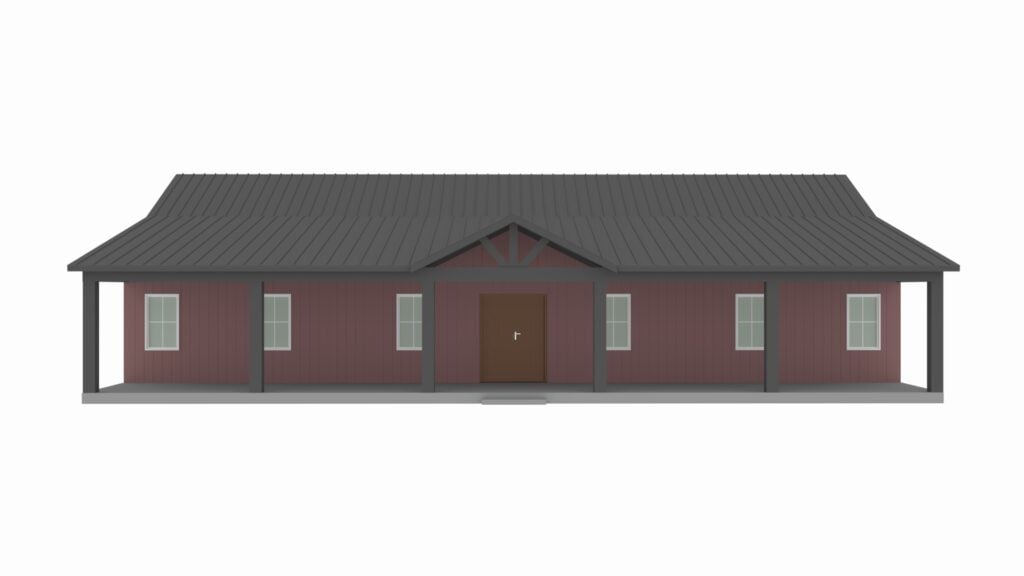

Front And Rear Elevation
Right And Left Elevation
Electrical Plan
Plumbing Plan
HVAC Plan
Roof Framing Plan
Foundation Plan
Foundation Detail
Interior Bearing Footing
C-Typical Column Detail
Wall Section

For more barndominium floor plans, check out our complete collection of 3 bedroom barndominium floor plans.

Need to make changes? Submit a modification request using the button that says Modify This Plan . We will get you a free price quote within 72 hours.

Order PL-62512-V Now
